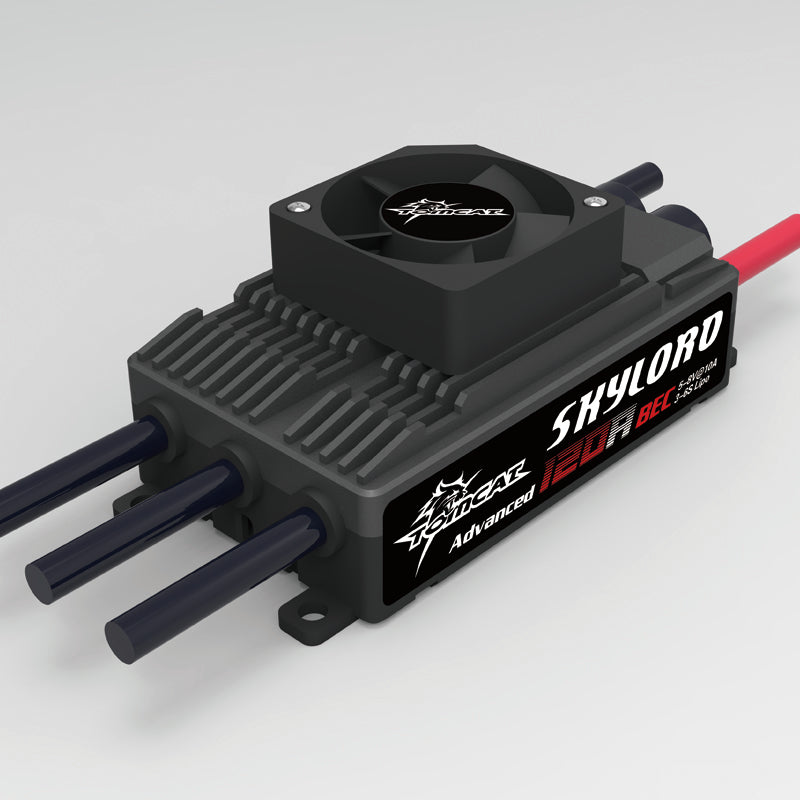

Skylord Advanced 120A is an electronic speed controller (ESC) for controlling the motor speed and applicable for 500~550 class helicopter (propeller: 470~575mm), large airplane, large duct airplane. This ESC, whose continuous current is 120A, supports multiple flight modes including Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor). It also supports multiple protections, and can be adjusted parameters by 3-in-1 program card, which is convenient to user.
Specifications
Model: Skylord Advanced 120A
Application: 500-550 Class Helicopters (Propeller: 470-575mm), large airplane, large duct airplane
Input Voltage: 2S~6S Li-Po
Continuous Current: 120A
Peak Current (10s): 150A
BEC Output: Switch-mode, 5~8V Adjustable (Step: 0.1V), 10A/25A Cont./peak
Throttle Signal/BEC Output/RPM Signal Transmission Wires: Throttle Signal Wire: White
BEC Output Wires: Red & Blackˎ Red & Brown
RPM Signal Transmission Wire: Yellow
Separate Programming Port: For connecting 3-in-1 program card
Weight: 110g
Size: 79*40.5*31.6mm
